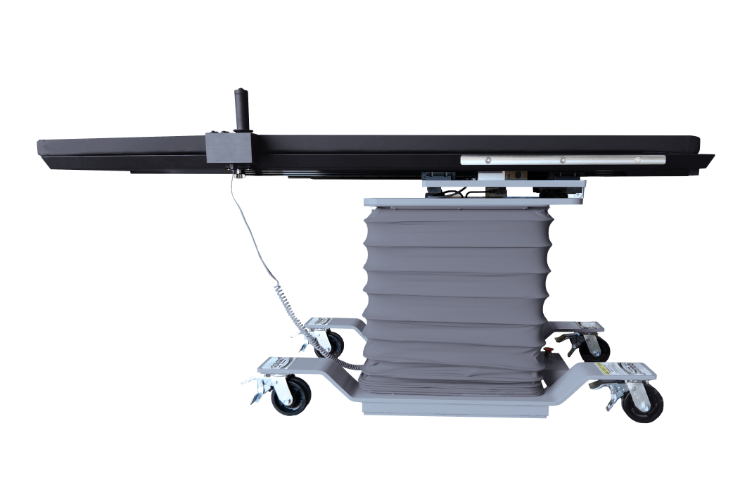

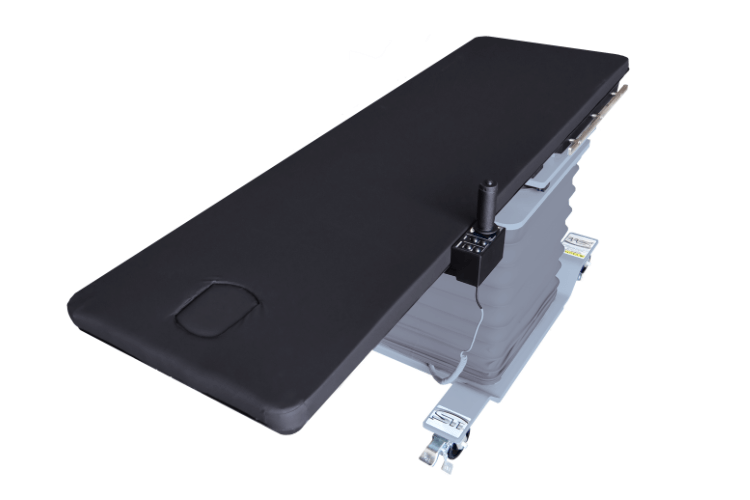

Surgical Tables, Inc’s V-MAX Pro series of vascular c-arm tables offer not only quality, but reliability. You will love our joystick – specifically, it has great grip and gives the user excellent control. The V-MAX offers height adjustment and four-way float. The V-MAXT offers height adjustment, four-way float, and also trendelenberg.

The V-MAX series vascular c-arm tables offer the user ease of use as can be seen in the instant response electric brake which releases for the four-way float function to operate. The table top smoothly floats until the button is released which stops the tabletop from moving. The joystick can be placed anywhere along the edge of the table imaging area. This allows the end user to easily access the joystick from whichever side they choose to work from.

Standard features for both table models include:

  • Diving board style for easy C-arm access
  • Large patient capacity (500-lb pound load)
  • 2” high quality patient comfort pad
  • Facial cut-out access
  • A 24” wide carbon fiber top eliminates the needs for arm boards
  • A 27″ wide top upgrade is also available
  • An 84″ length to accommodate even the tallest of patients
  • Easy patient transfer to table
  • Any OR accessory can be rigidly attached to the table top
  • Bellows to cover and protect the table motor assembly
  • Rotating and lockable casters
  • Control handle (joystick) for easy table movement


Options include:

  • Foot switch
  • Modular side rail system
  • Surgical arm boards (can rotate 180 degrees)
  • Procedural arm boards (each can rotate 180 degrees)
  • Rectangle arm boards
  • Lollipop arm boards
  • Catheter Tray

V-Max Series Movements



The URO-MAX Series of imaging tables come in five different models, with all offering varying selections of motorized adjustments:



  • V-Max-Pro:

     Height Adjustment: 28" to 38"

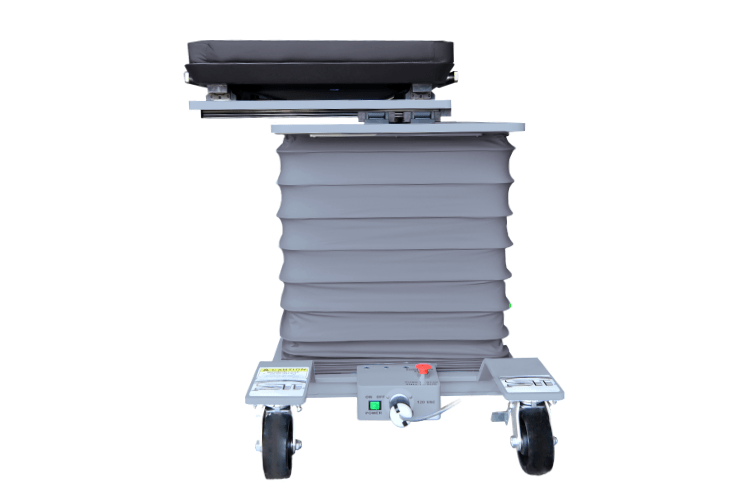

     Lateral Float: 14"

     Longitudinal Float: 38" (+/- 19")



  • V-MaxT-Pro:

     Height Adjustment: 28" to 38"

     Lateral Float: 14"

     Longitudinal Float: 38" (+/- 19")

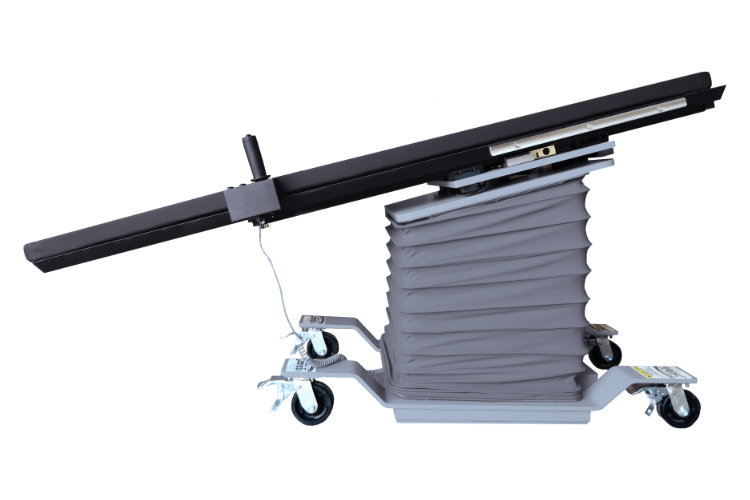

     Trendelenburg Adjustment: +/- 17°



A Joystick is standard with both V-MAX models.



The height buttons support raising and lowering the table top. The Trendelenburg buttons control the angle of inclination of the head end. The four-way float allows to user to move laterally and longitudinally with the press of one button at the top of the joystick.



Note that all V-MAX Series imaging tables with motorized movements require 120 VAC power for operation.

Warranty



Surgical Tables Incorporated provides a 4 Year Limited Warranty on non-electrical parts and a 1 Year Limited Warranty on electrical components. The warranty is only valid to the original purchaser and is not transferable. Surgical Tables Incorporated has the right to assess if misuse has occurred. In the case of misuse the warranty is void.



System Requirements for all Models





V-Max Series Surgical Tables - Brochure



V-Max Series Surgical Tables - Specifications
