Surgical Tables Inc. URO-MAX Series C-Arm Table

Regular price
Sale price
Shipping calculated at checkout.

Available in stock: 10

Make Offer
To make an offer please complete the form below:
Offer Sent! Your offer has been received and will be processed as soon as possible.
  • Description
  • Features
  • Models
  • Accessories
  • Warranty & More

Urology, Lithotripsy & Nephrology

The use of fluoroscopic C-arms in urology, lithotripsy and nephrology is becoming increasingly popular.  Procedures involving ureteric stents, percutaneous nephrolithotomy (PCNL) treatments, & lithotripsy are being performed in hospitals, ambulatory surgery centers and physician offices with regularity.

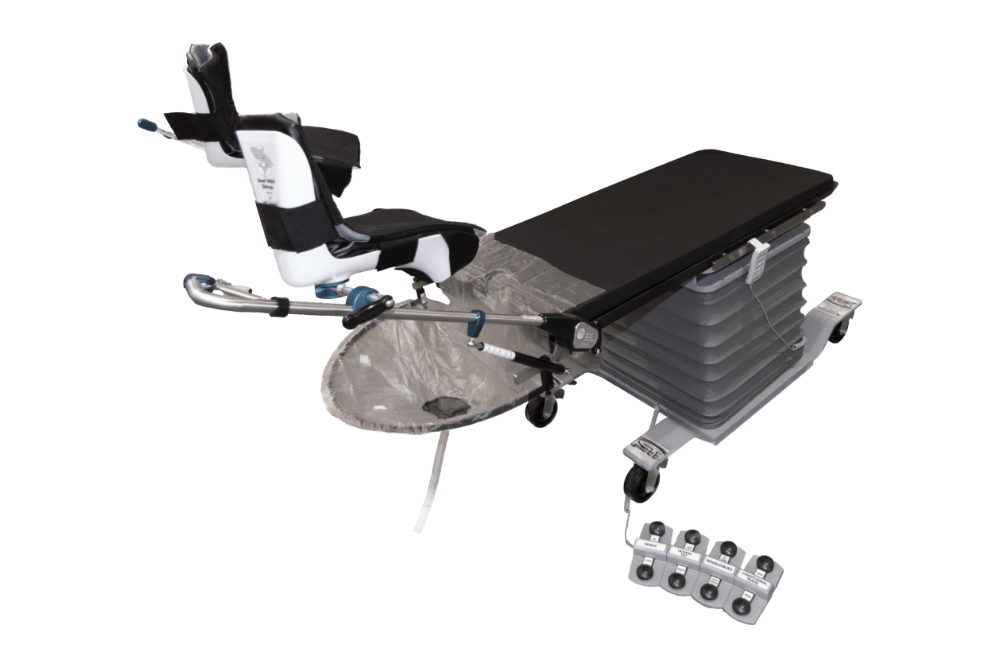

Surgical Tables Inc.’s URO-MAX C-arm imaging tables are an excellent solution for urological real-time x-ray procedures. Our cantilevered carbon fiber radiolucent top areas allow full fluoroscopic visualization and unobstructed C-Arm positioning. The Uro-MAX is very versatile with many movement options and accessories.

Another advantage to the URO-MAX is the optional extensions to make the table full length. You can add a  leg extension which makes the table full length, or a full body extension which can quickly turn your urology table into a procedure table for pain management and other C-arm guided procedures.

We kept versatility in mind when designing our UroMAX series urology c-arm tables. You can customize your purchase to fit your needs.

  1. Choose your model: Choose between the 5 UroMAX models below. (The UroMAX-4 is our most popular option!)

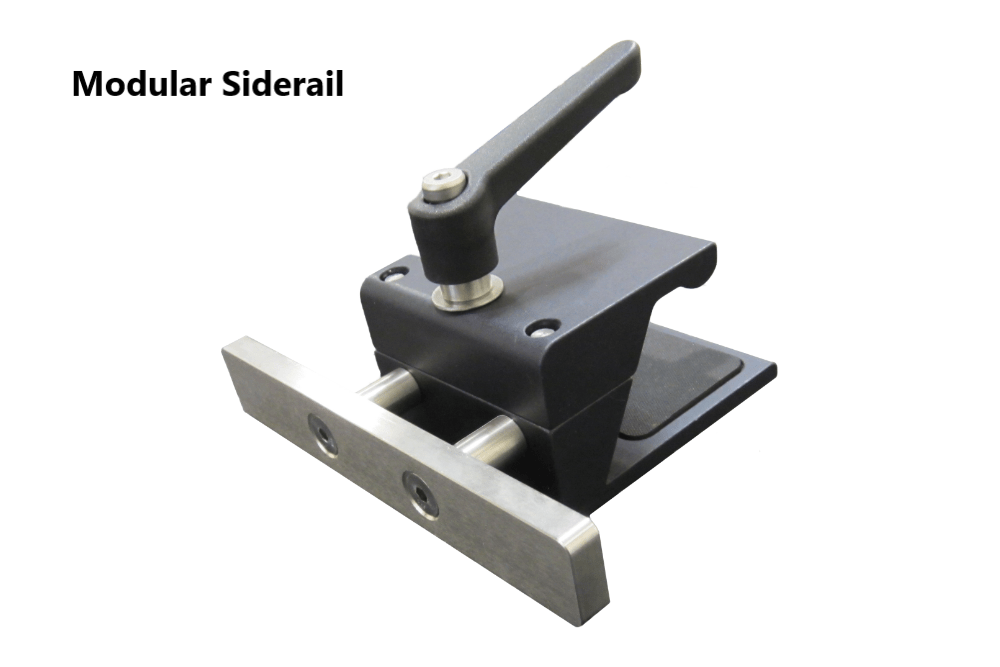

  2. Choose your siderails: We offer siderails which run the length of the table. Also, if you prefer, we carry a “split” siderail option which many choose when performing lithotomy procedures.

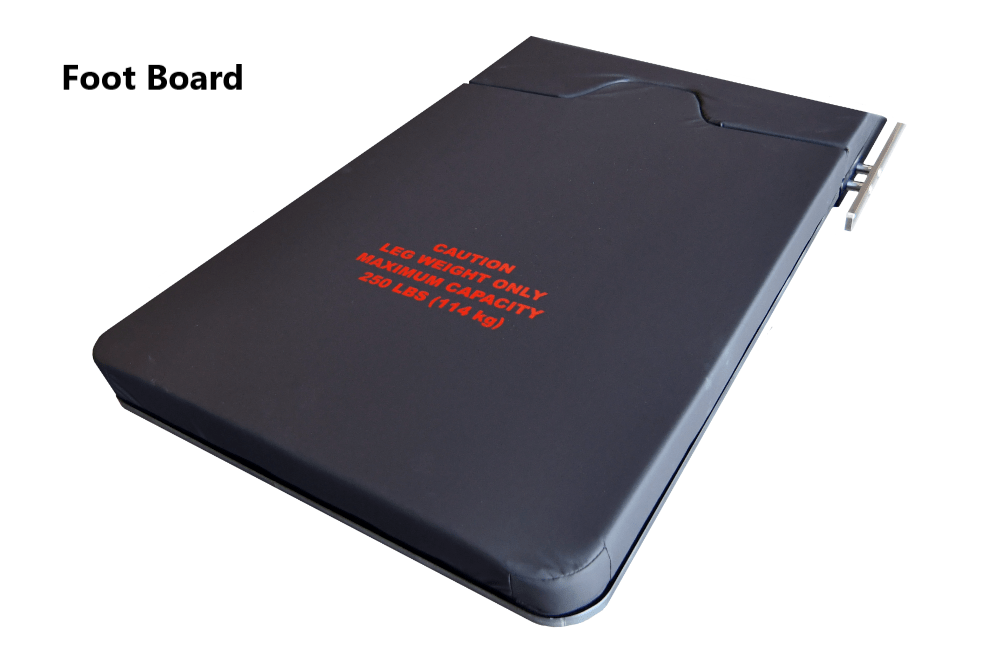

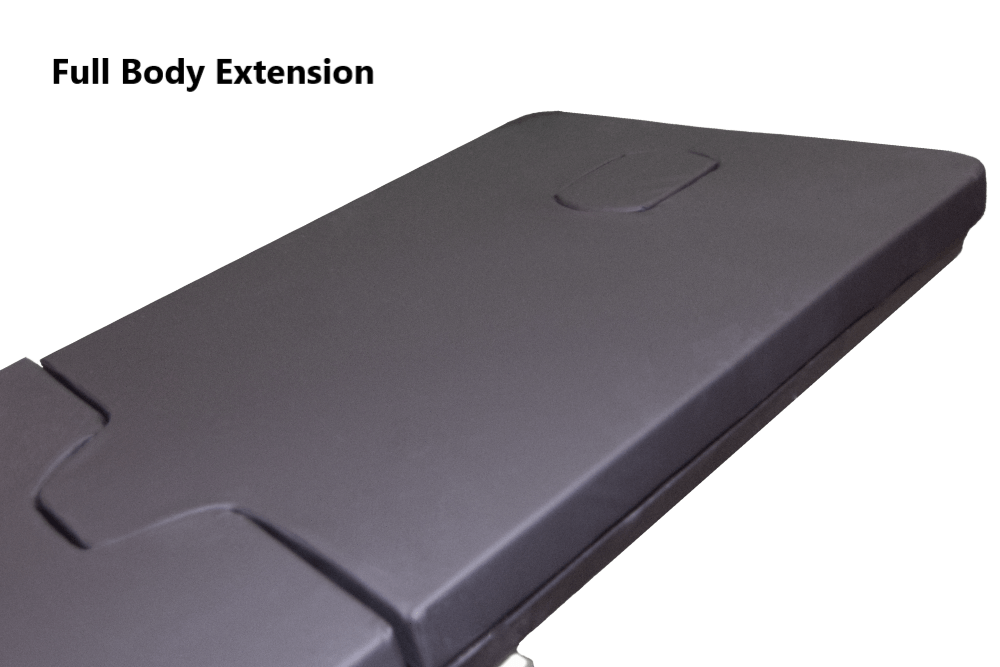

  3. Add on your extension: Just doing Urology procedures? You may only need our leg extension which holds up to 250 lbs. Sharing your table? We also offer an upper body extension which holds up to 500 lbs and has a facial cutout allowing the user to perform prone procedures.

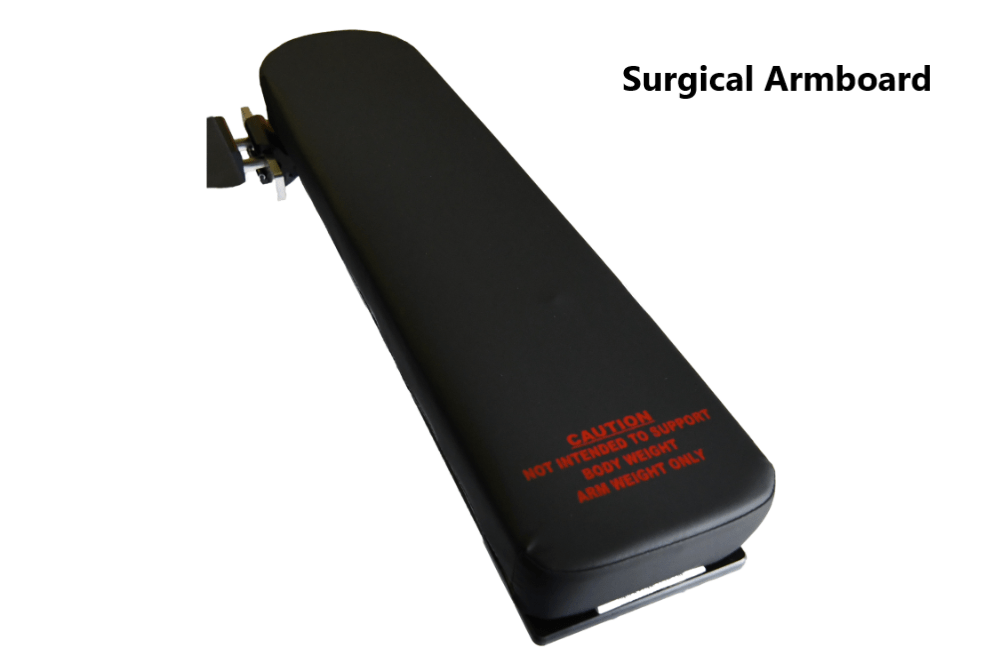

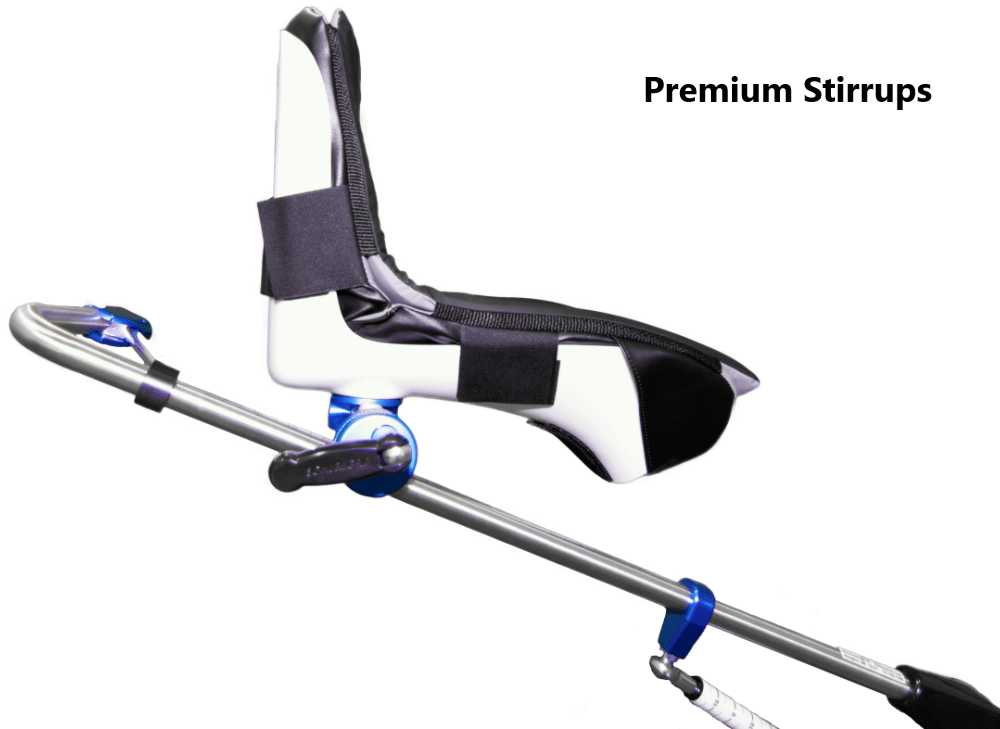

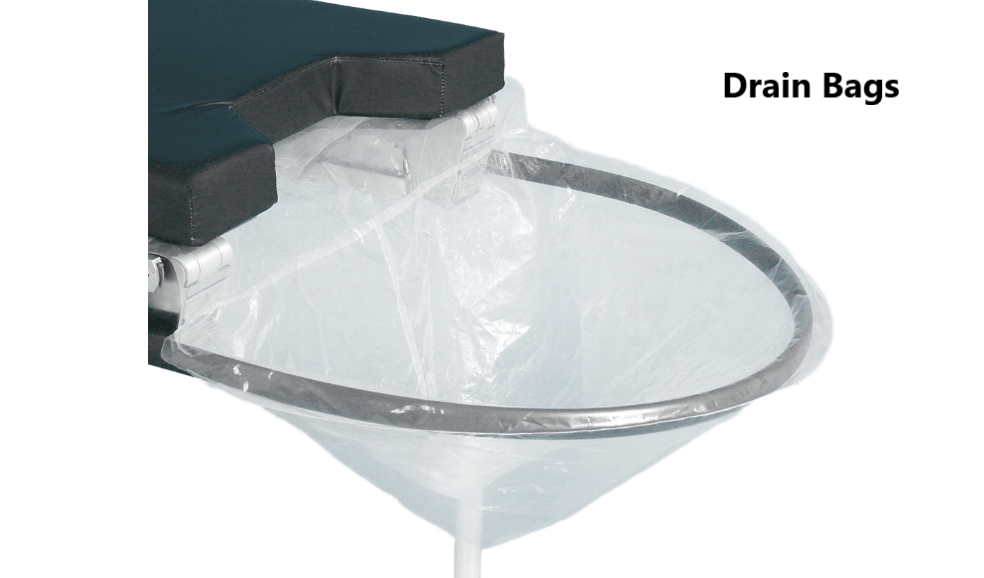

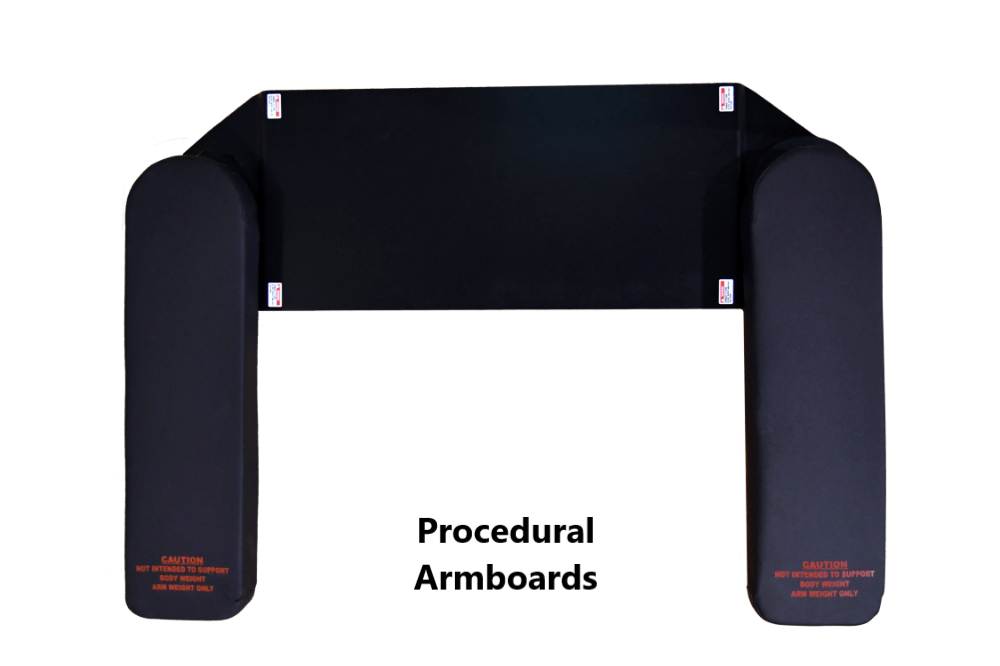

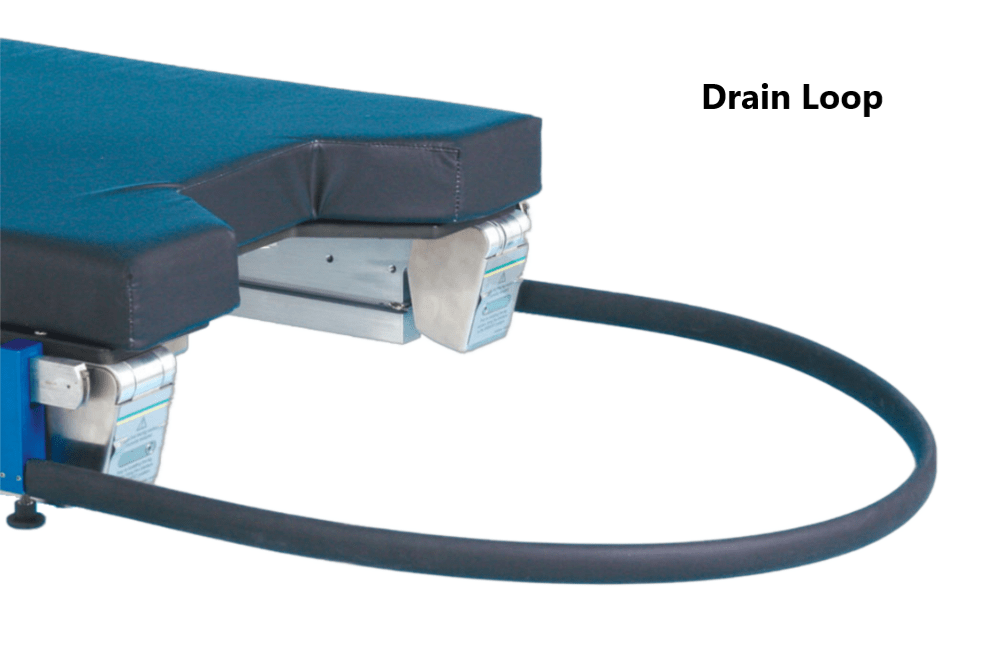

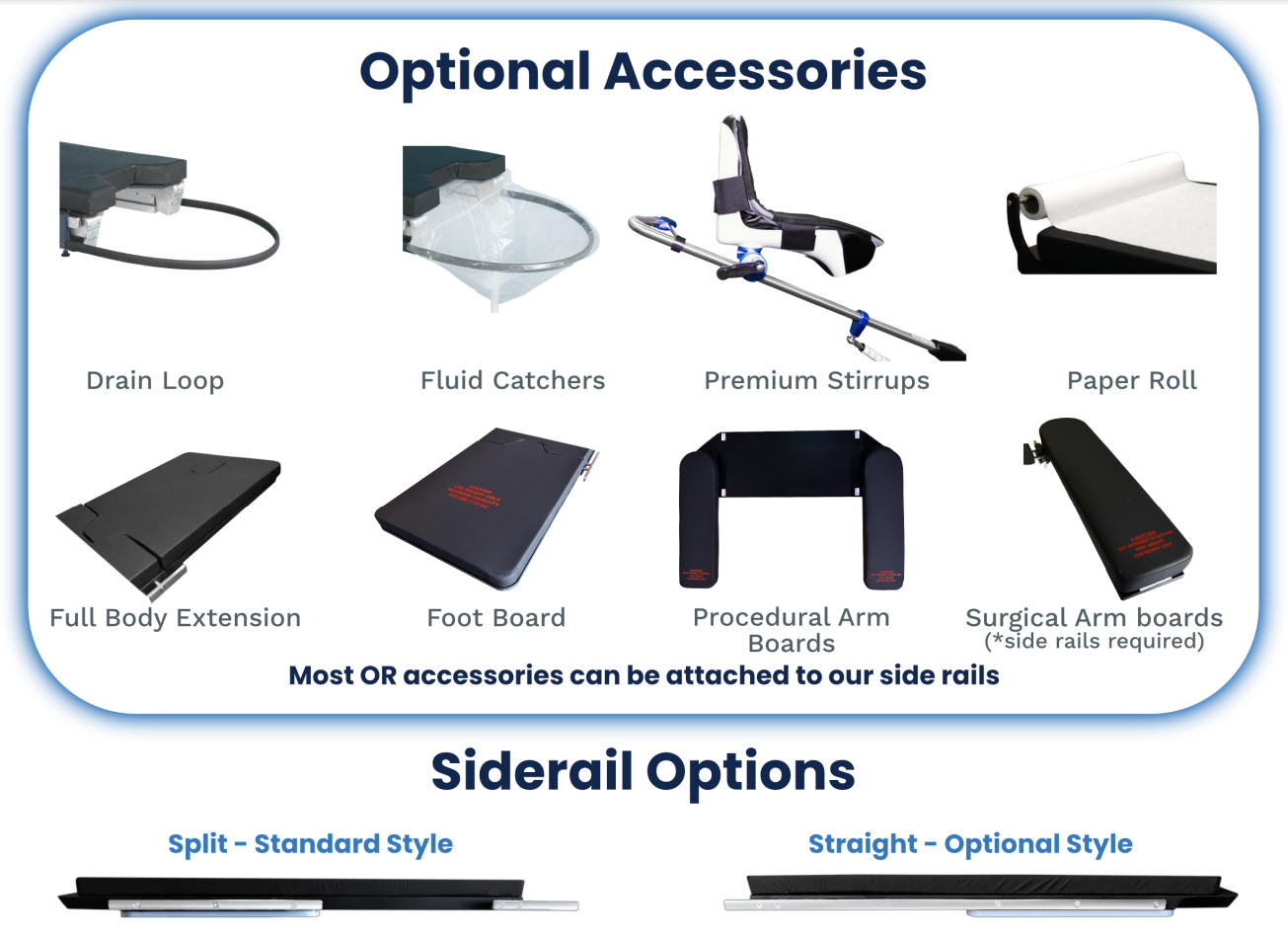

  4. Choose your optional accessories. Our siderails are a standard size and fit most accessories. We also offer a package containing stirrups, a drain loop, and 10 drain bags. You may also opt for some armboards. See our accessories section for more accessories.


Our UroMAX urology c-arm tables offer not only flexibility, but reliability

When it comes to a urology table, lithotripsy table, or a nephrology table for a busy examination or procedure room, you need a table that’s capable of handling a wide variety of patients and procedures. Additionally, our URO-MAX Imaging C-Arm tables allow for simultaneous motion in all five directions for fast and accurate patient placement:

  • Height adjustment
  • Lateral Travel
  • Longitudinal Travel
  • Trendelenburg
  • Lateral Tilt

This type of flexibility and adjustability allows for safe and seamless maneuvering of incapacitated patients both on and off the table. And the low boarding height is also suitable for patients in wheelchairs or with limited mobility.


A C-Arm Table Designed with Urology, Lithotripsy, and Nephrology in Mind

Urological, Lithotripsic, and Nephrological procedures have very specific needs when it comes to C-Arm tables and with a URO-MAX table in your procedure rooms, you’ll have the capabilities to meet the needs of both your patients and their caregivers. Give your procedure room the flexibility and efficiency that comes with a Surgical Tables Inc. table.

URO-MAX features include:


  • Diving board style for easy C-arm access
  • Large patient capacity (500-lb pound load)
  • A 2” patient high quality comfort pad
  • Our 24” wide top eliminates the needs for arm boards
  • Easy patient transfer to table
  • Protective bellows between the base and top
  • Most standard OR accessories can be rigidly attached to the table top
  • Optional upper body extension allows for procedures in multiple modalities
  • Carbon fiber with integral facial cutout section
  • Extensions are easy to remove and light weight
  • Remove and install leg or full body extension while fluid catcher is in place

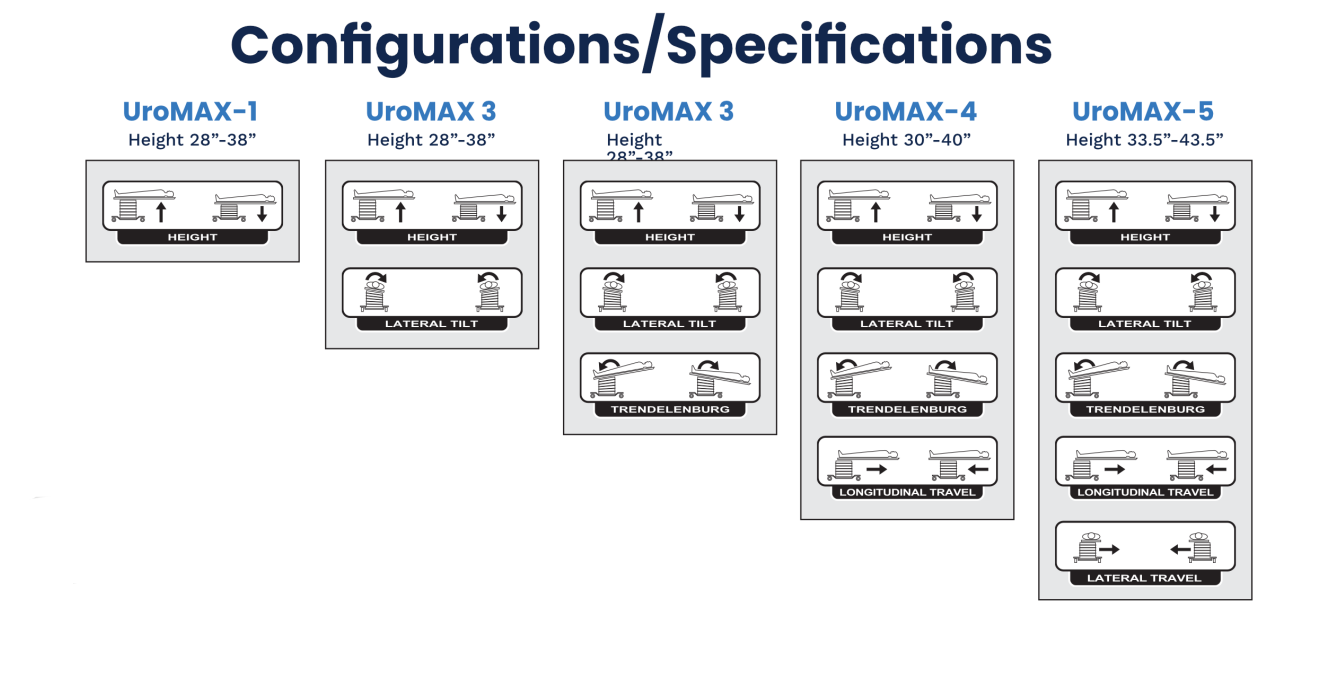

URO-MAX Series Movements


The URO-MAX Series of imaging tables come in five different models, with all offering varying selections of motorized adjustments:


  • UROMAX-1:

     Height Adjustment: 28" to 38"


  • UROMAX-2:

     Height Adjustment: 28" to 38"

     Lateral Tilt Adjustment: +/- 17°


  • UROMAX-3:

     Height Adjustment: 28" to 38"

     Lateral Tilt Adjustment: +/- 17°

     Trendelenburg Adjustment: +/- 13°


  • UROMAX-4:

     Height Adjustment: 30" to 40"

     Lateral Tilt Adjustment: +/- 17°

     Trendelenburg Adjustment: +/- 13°

     Longitudinal Travel: 10" (+/- 5")


  • UROMAX-5:

     Height Adjustment: 33.5" to 43.5"

     Lateral Tilt Adjustment: +/- 17°

     Trendelenburg Adjustment: +/- 13°

     Longitudinal Travel: 10" (+/- 5")

     Lateral Travel: 10" (+/- 5")


All URO-MAX series imaging tables include a remote control, patient straps, fixed side rails, and a foot control.



Surgical Tables Incorporated provides a 4 Year Limited Warranty on non-electrical parts and a 1 Year Limited Warranty on electrical components. The warranty is only valid to the original purchaser and is not transferable. Surgical Tables Incorporated has the right to assess if misuse has occurred. In the case of misuse the warranty is void.


System Requirements for all Models


URO-MAX Series Surgical Tables - Brochure


URO-MAX Series Surgical Tables - Specifications


Please feel free to ask any additional questions you may have!
No returns for International Shipments *
30-Day Return Policy for Sales in the United States*
The sale of this item may be subject to strict regulation by the US Food and Drug.
Administration and state and local regulatory agencies. If so, do not bid on this item unless you are an authorized purchaser. If the item is subject to state or FDA regulation, you must provide verification that you are an authorized user.
