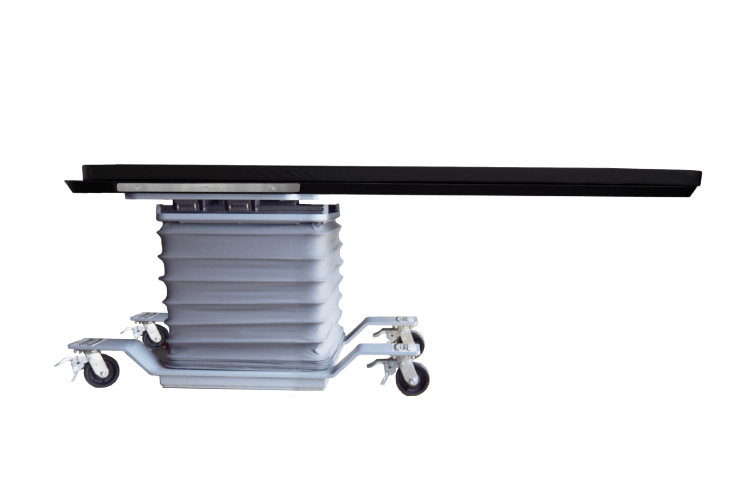

At Surgical Tables, Inc, we know mobile c-arm tables. With this in mind, our MAX ERCP Series c-arm table was designed with the needs of multiple doctors in mind.

In addition, they feature a short H-style base. A MAX ERCP table can hold patients up to 500 lbs regardless of the positioning of the patient. You will love not only the quality and performance of the MAX ERCP series c-arm tables, but also the price. Most importantly, our MAX ERCP series imaging tables are very affordable, however they do not compromise quality.  Additionally, we make our imaging tables in our factory in Massachusetts.

The MAX ERCP series can be used for multiple modalities, and they are often found being used for both ERCP and GI procedures. Along with our EconoMAX series and Streamline series, STI gives your practice plenty of options for a pain management table.

MAX ERCP features include:


  • Increased longitudinal travel, perfect for endoscopic retrograde cholangiopancreatography (ERCP) procedures
  • Carbon fiber, diving board style for easy C-arm access
  • Large patient capacity – high-end actuator motor supports 500-pound loads
  • An 84″ length can accommodate even the tallest of patients
  • A 24″ top eliminates the need for arm boards
  • Two-inch thick, high quality patient comfort pad
  • Facial cut-out for prone procedures
  • Light weight – easy to physically move the table within the room or from room to room
  • Simple to use, high quality wheel locks
  • Extreme low position makes boarding patients fast, easy and safe
  • Emergency Stop Switch
  • Protective bellows provides safety by enclosing all motors, controls and wiring. The protective bellows are also easily cleaned with standard operating or procedural room sanitizing procedures

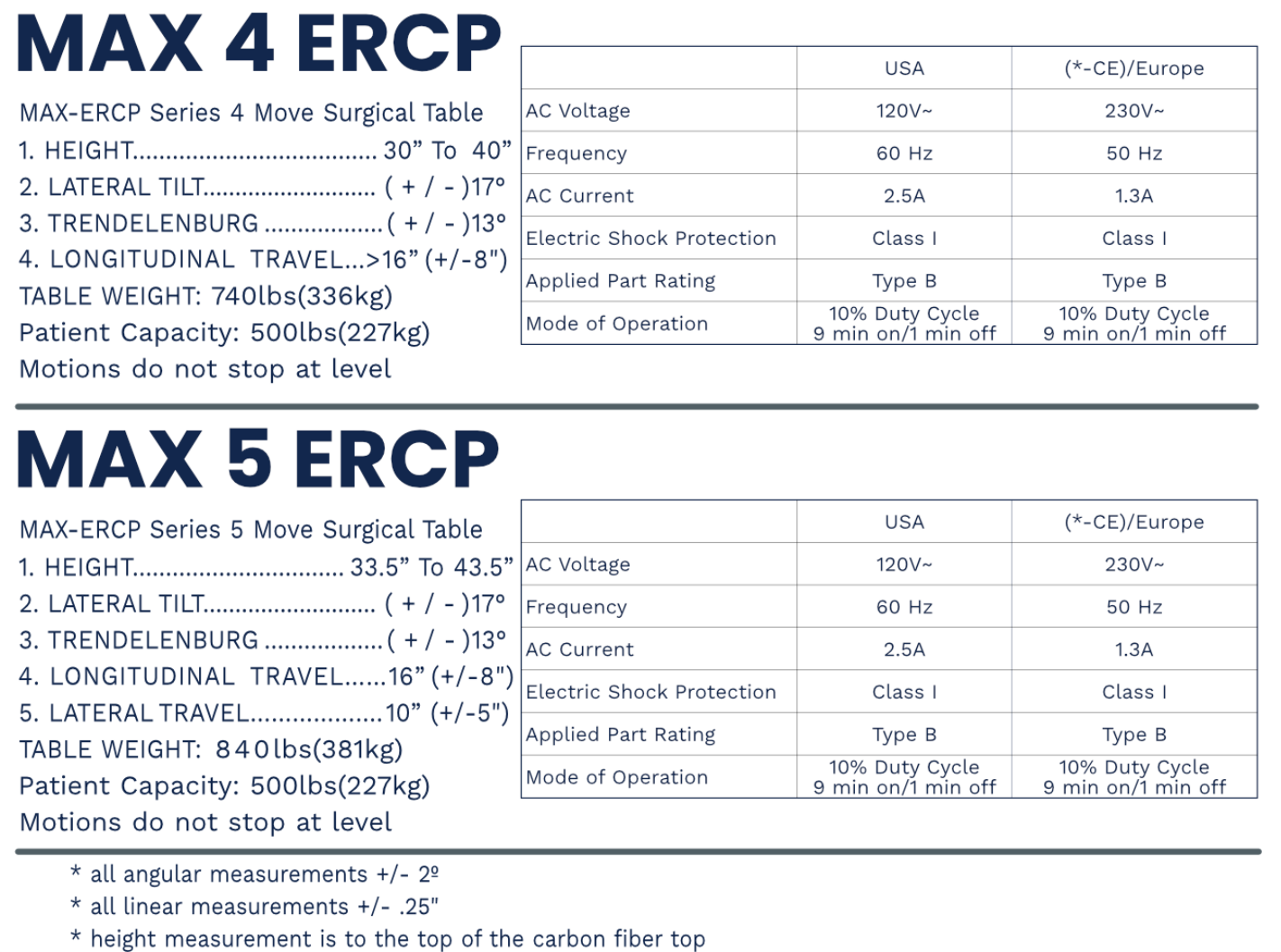

MAX ERCP Series Movements


The MAX ERCP Series of imaging tables come in five different models, with all offering varying selections of motorized adjustments:


  • MAX-ERCP-4:

     Height Adjustment: 30" to 40"

     Lateral Tilt Adjustment: +/- 17°

     Trendelenburg Adjustment: +/- 13°

     Longitudinal Travel: 16" (+/- 8")


  • MAX-ERCP-5:

     Height Adjustment: 33.5" to 43.5"

     Lateral Tilt Adjustment: +/- 17°

     Trendelenburg Adjustment: +/- 13°

     Longitudinal Travel: 16" (+/- 8")

     Lateral Travel: 10" (+/- 5")

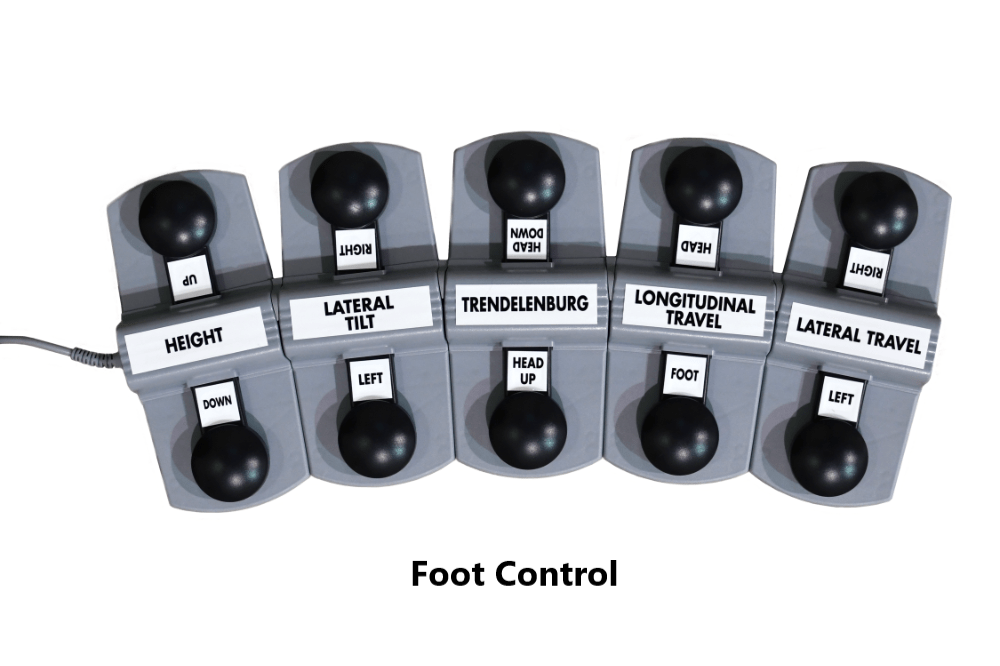

All MAX series imaging tables include a remote control, patient straps, and fixed side rails.




Surgical Tables Incorporated provides a 4 Year Limited Warranty on non-electrical parts and a 1 Year Limited Warranty on electrical components. The warranty is only valid to the original purchaser and is not transferable. Surgical Tables Incorporated has the right to assess if misuse has occurred. In the case of misuse the warranty is void.


System Requirements for all Models


MAX Series Surgical Tables - Brochure


MAX ERCP Series Surgical Tables - Specifications


Please feel free to ask any additional questions you may have!
No returns for International Shipments *
30-Day Return Policy for Sales in the United States*
The sale of this item may be subject to strict regulation by the US Food and Drug.
Administration and state and local regulatory agencies. If so, do not bid on this item unless you are an authorized purchaser. If the item is subject to state or FDA regulation, you must provide verification that you are an authorized user.
