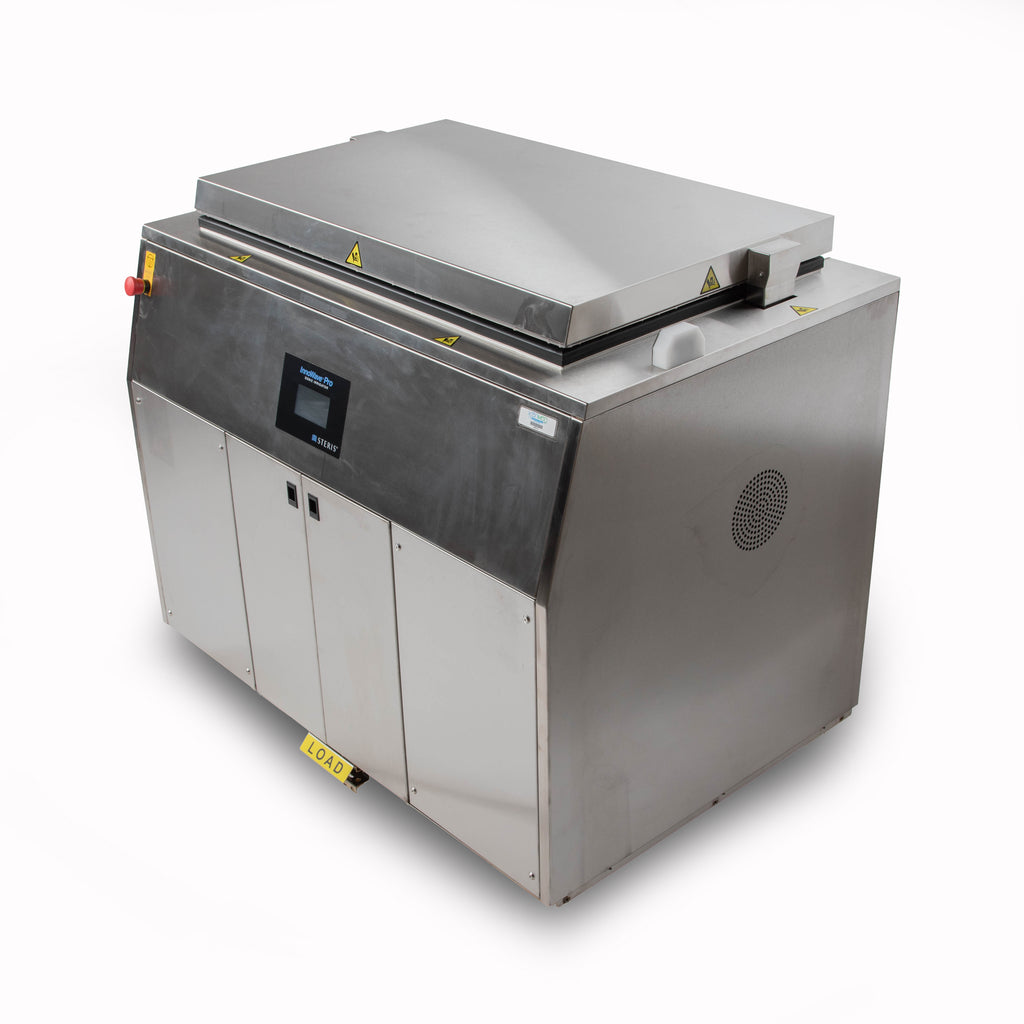

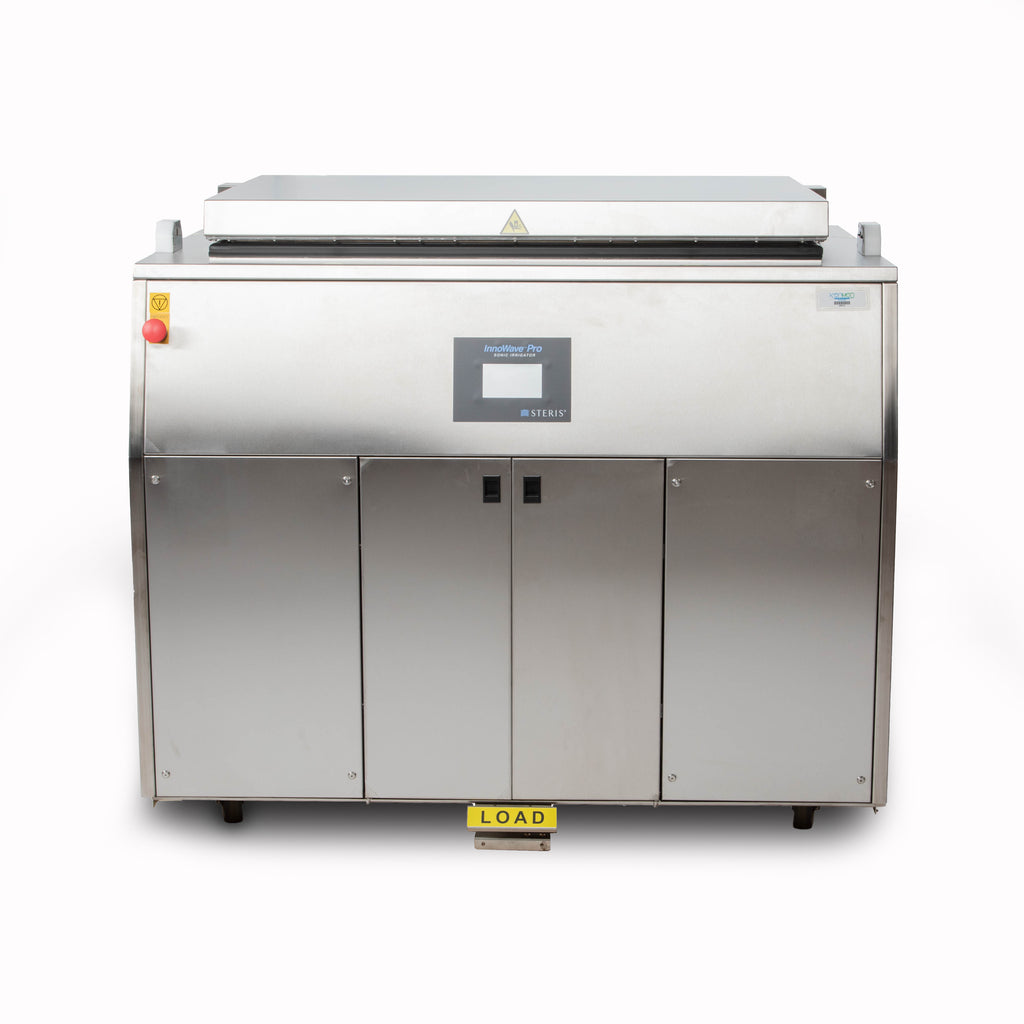

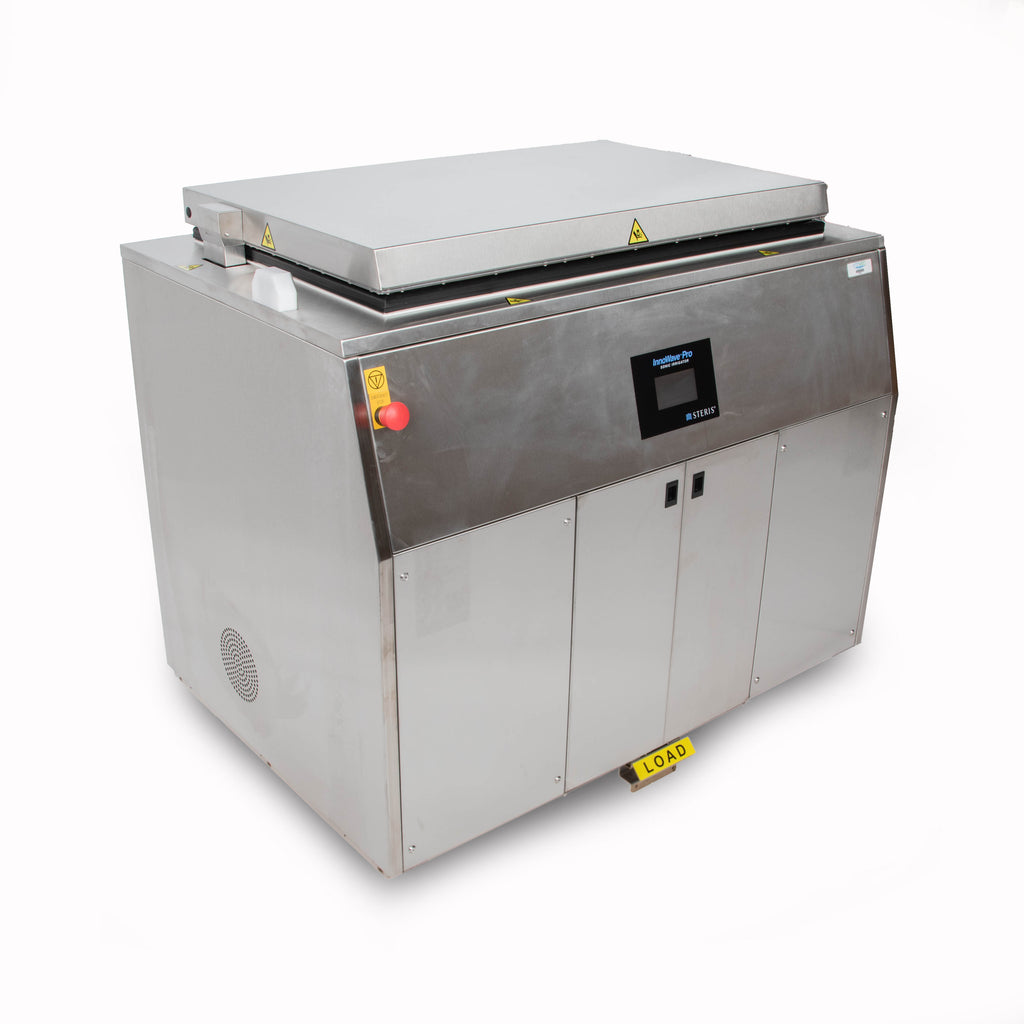

The InnoWave PRO Sonic Irrigator is a

freestanding high-pressure washer disinfector in

a compact stainless-steel cabinet. The InnoWave

PRO contains all needed components to

effectively clean 60 lumens or 66 lb (30 kg) of

reusable general surgical instruments prior to sterilization.

Cleaning and intermediate-level thermal

disinfection is achieved through a combination of

ultrasonics and flushing action with heated water to

remove debris from both outside and inside (hollow

instruments only) of items placed in wash tank.

The InnoWave PRO is equipped with:

• Sonic Irrigation

• Power Flush

• Deluge Wash

• Thermal Disinfection

• Auto Lid-Locking

• Foot Pedal

• Touch Screen

• Data Capture/Export Capabilities

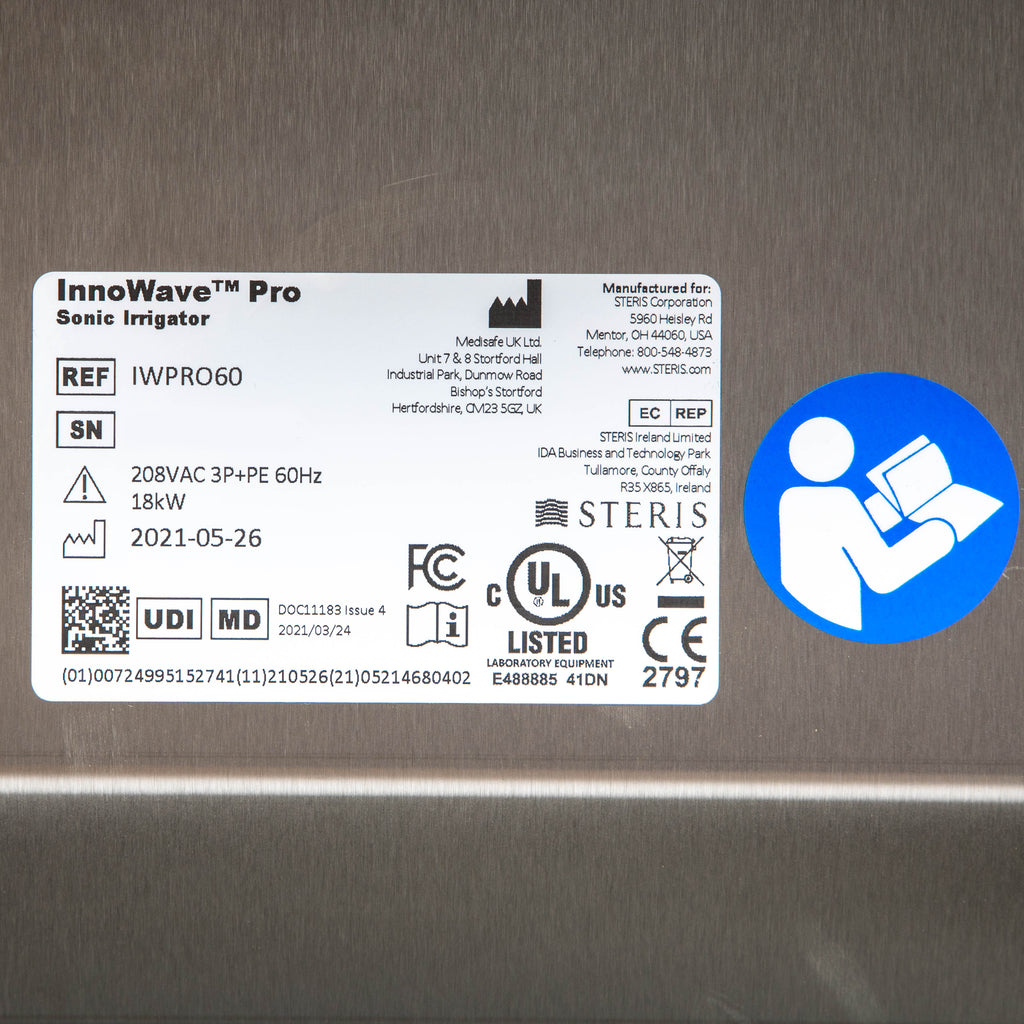

Electrical*

Voltage: 200-230 Vac, 60 Hz, 3-Phase + PE.

Power: 18 kW.

Facility Current Capacity: > 48A per Phase.

Facility MCB and Disconnect Switch Current Rating: 63A.

Drain

Type: Gravity.

Connection: 2.125" OD outlet from unit. Drain pipe must be at least 4" ID.

Traps: Drain must be fitted with suitable traps.

Capacity: Greater than 47.5 gal/min.

Overflow: Internally connected (within unit) to drain pipe

downstream of drain valve.

NOTE: Drain entry and entire drain hose must be below unit

drain outlet. A floor sink or floor drain is required. Drain can

be extended up to 1.0 meter from unit drain outlet.

Hot Water

3/4" Stainless-Steel BSP; 30 - 70 psi (2-5 bar); 122-140°F (50-60°C).

Cold Water

3/4" Stainless-Steel BSP;30 - 70 psi (2-5 bar); 41-86°F (5- 30°C).

RO/DI Water (Optional)

3/4" Stainless-Steel BSP;30 - 70 psi (2-5 bar); 41-140°F (5-60°C).

Flow Rate

3 - 8 gal/min

Heating Rate

4°C/min (9°F/min)
