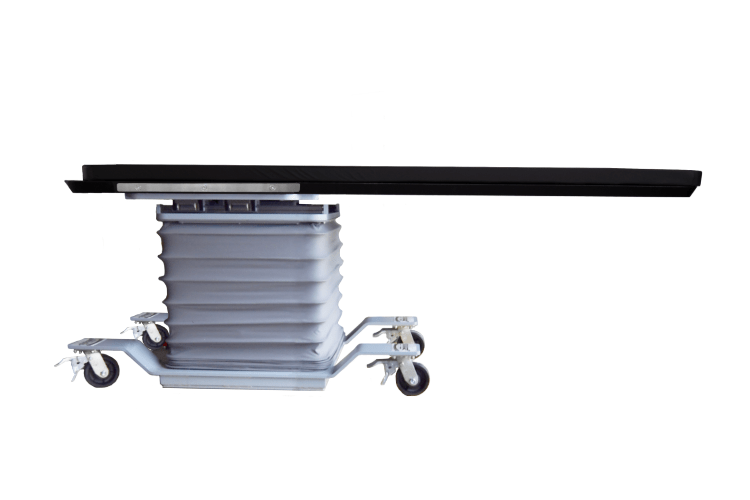

At Surgical Tables, Inc, we know mobile c-arm tables. With this in mind, our MAX Series c-arm table was designed with the needs of multiple doctors in mind.

In addition, they feature a short H-style base. A MAX table can hold patients up to 500 lbs regardless of the positioning of the patient. You will love not only the quality and performance of the MAX series c-arm tables, but also the price. Most importantly, our MAX series imaging tables are very affordable, however they do not compromise quality.  Additionally, we make our imaging tables in our factory in Massachusetts.

The MAX series can be used for multiple modalities, and they are often found being used for both pain management and GI procedures. Along with our EconoMAX series and Streamline series, STI gives your practice plenty of options for a pain management table.

MAX features include:



  • Carbon fiber, diving board style for easy C-arm access
  • Large patient capacity – high-end actuator motor supports 500-pound loads
  • An 84″ length can accommodate even the tallest of patients
  • A 24″ top eliminates the need for arm boards
  • Two-inch thick, high quality patient comfort pad
  • Facial cut-out for prone procedures
  • Light weight – easy to physically move the table within the room or from room to room
  • Simple to use, high quality wheel locks
  • Extreme low position makes boarding patients fast, easy and safe
  • Emergency Stop Switch
  • Protective bellows provides safety by enclosing all motors, controls and wiring. The protective bellows are also easily cleaned with standard operating or procedural room sanitizing procedures

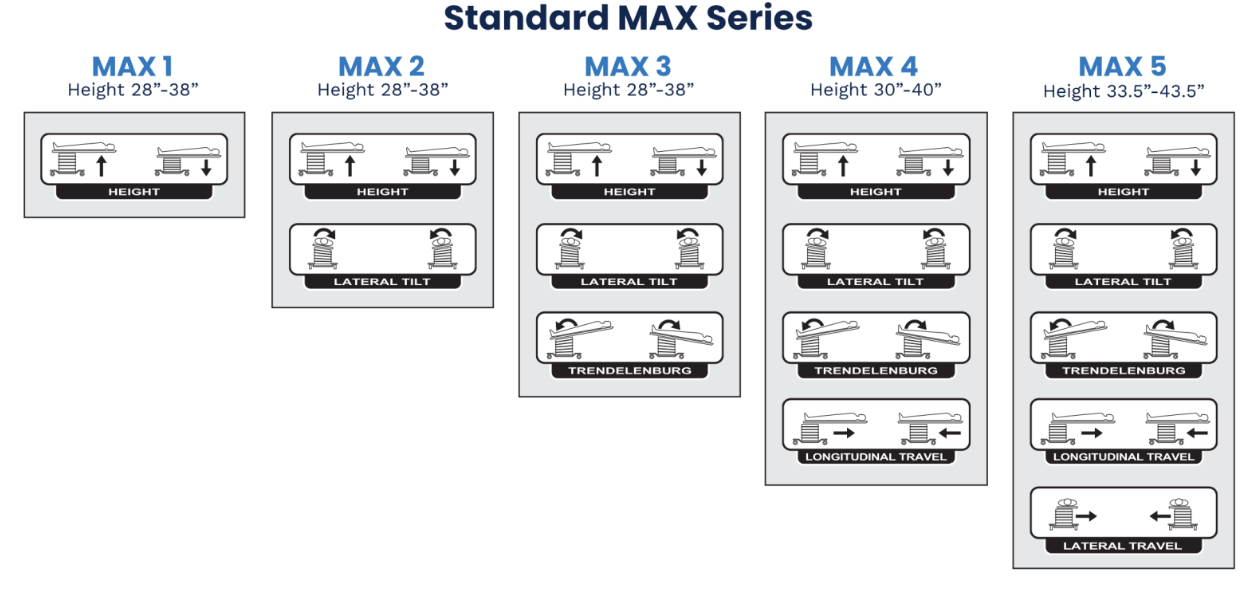

MAX Series Movements



The URO-MAX Series of imaging tables come in five different models, with all offering varying selections of motorized adjustments:



  • MAX-1:

     Height Adjustment: 28" to 38"



  • MAX-2:

     Height Adjustment: 28" to 38"

     Lateral Tilt Adjustment: +/- 17°



  • MAX-3:

     Height Adjustment: 28" to 38"

     Lateral Tilt Adjustment: +/- 17°

     Trendelenburg Adjustment: +/- 13°



  • MAX-4:

     Height Adjustment: 30" to 40"

     Lateral Tilt Adjustment: +/- 17°

     Trendelenburg Adjustment: +/- 13°

     Longitudinal Travel: 10" (+/- 5")



  • MAX-5:

     Height Adjustment: 33.5" to 43.5"

     Lateral Tilt Adjustment: +/- 17°

     Trendelenburg Adjustment: +/- 13°

     Longitudinal Travel: 10" (+/- 5")

     Lateral Travel: 10" (+/- 5")



All MAX series imaging tables include a remote control, patient straps, and fixed side rails.

Warranty



Surgical Tables Incorporated provides a 4 Year Limited Warranty on non-electrical parts and a 1 Year Limited Warranty on electrical components. The warranty is only valid to the original purchaser and is not transferable. Surgical Tables Incorporated has the right to assess if misuse has occurred. In the case of misuse the warranty is void.



System Requirements for all Models



MAX Series Surgical Tables - Brochure



MAX Series Surgical Tables - Specifications
