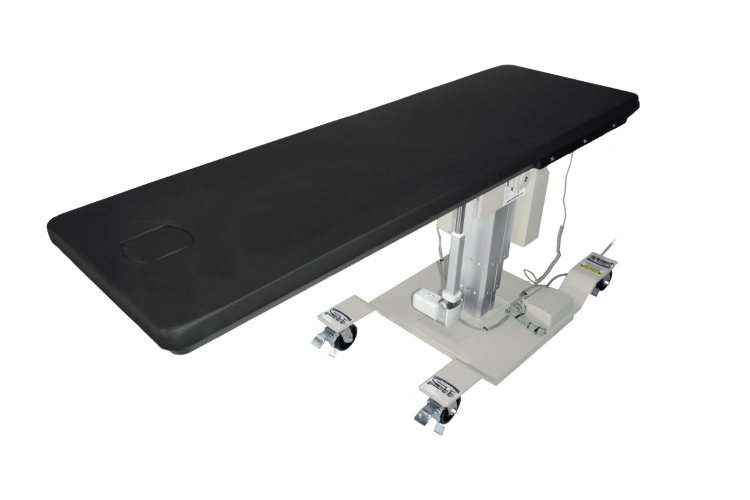

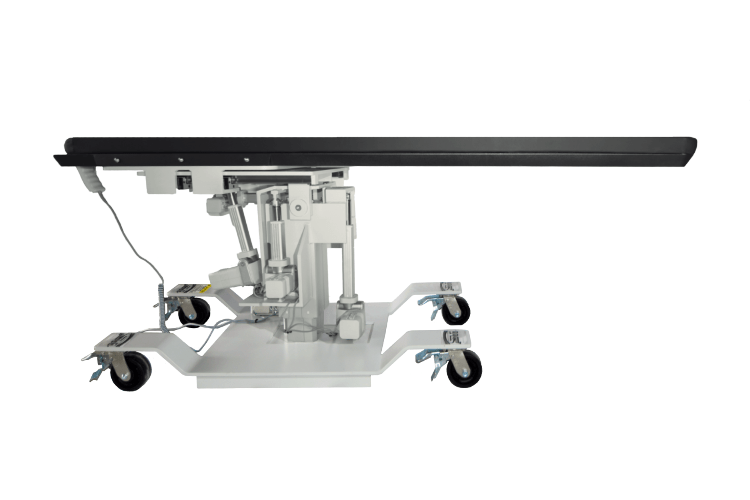

Surgical Tables Inc. EconoMAX Series C-Arm Table

Regular price
Sale price
Shipping calculated at checkout.

Available in stock: 10

Make Offer
To make an offer please complete the form below:
Offer Sent! Your offer has been received and will be processed as soon as possible.
  • Description
  • Features
  • Models
  • Accessories
  • Warranty & More

At Surgical Tables, Inc, we know pain management. With this in mind, our EconoMAX Series C-arm table was designed with the needs pain doctors in mind.


In addition, they feature a short H-style base. An EconoMAX table can hold patients up to 500 lbs regardless of the positioning of the patient. You will love not only the quality and performance of the EconoMAX series c-arm tables, but also the price. Most importantly, our EconoMAX series imaging tables are very affordable, however they do not compromise quality.


In conclusion, along with our best selling MAX series and Streamline series, STI gives your practice plenty of options for a pain management table.

EconoMAX C-arm tables feature:

  • Carbon fiber, diving board style for easy C-arm access
  • Large patient capacity – high-end actuator motor supports 500-pound loads
  • An 84″ length can accommodate even the tallest of patients
  • A 24″ top eliminates the need for arm boards
  • Two-inch thick, patient comfort pad
  • Facial cut-out for prone procedures
  • Light weight – easy to physically move the table within the room or from room to room
  • Simple to use, high quality wheel locks
  • Extreme low position makes boarding patients fast, easy and safe

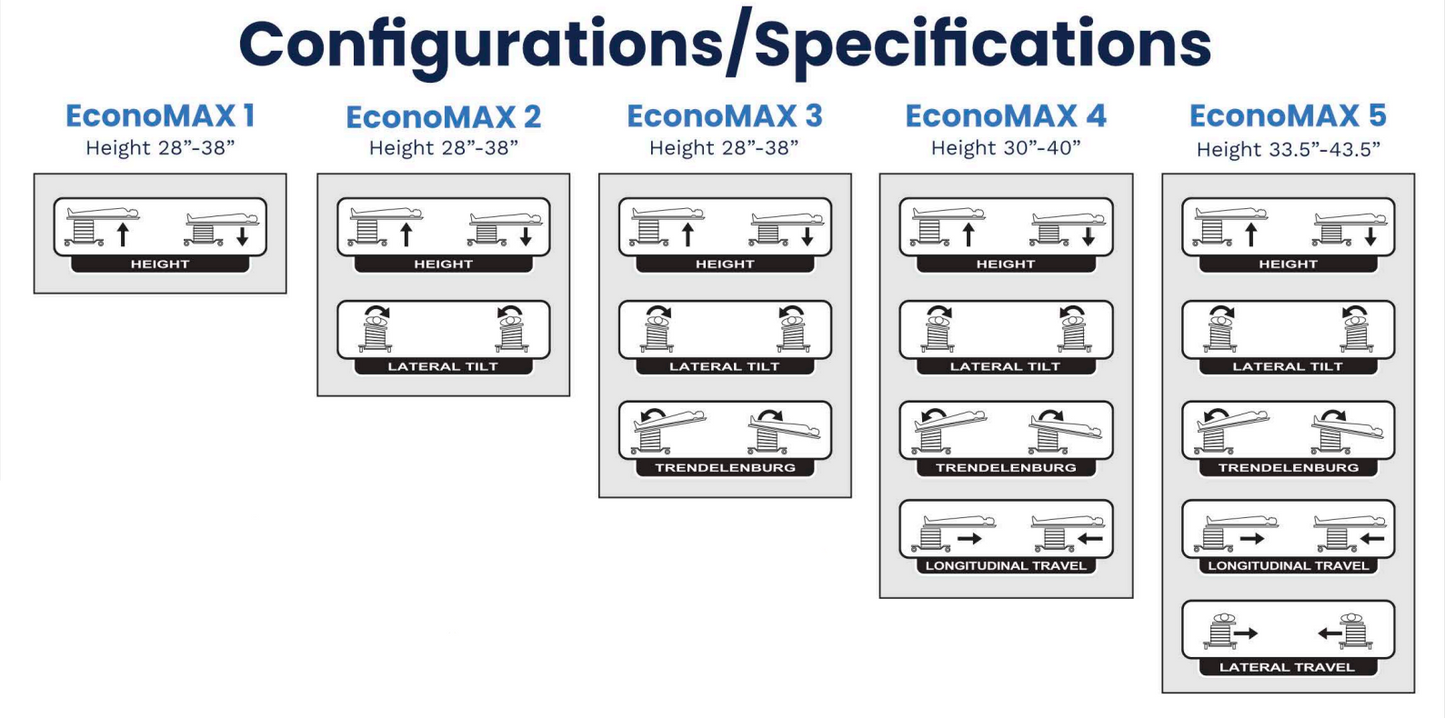

The EconoMAX series comes in five different models.

EconoMAX Series Movements


The EconoMAX Series of imaging tables come in three different models, each offering different motorized adjustments:


  • EC-1:

     Height Adjustment: 28" to 38"


  • EC-2:

     Height Adjustment: 28" to 38"

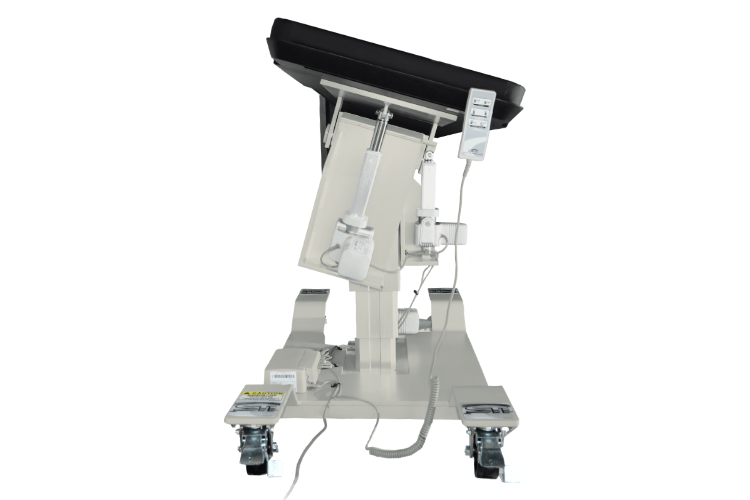

     Lateral Tilt Adjustment: +/- 17°

  • EC-3:

     Height Adjustment: 28" to 38"

     Lateral Tilt Adjustment: +/- 17°

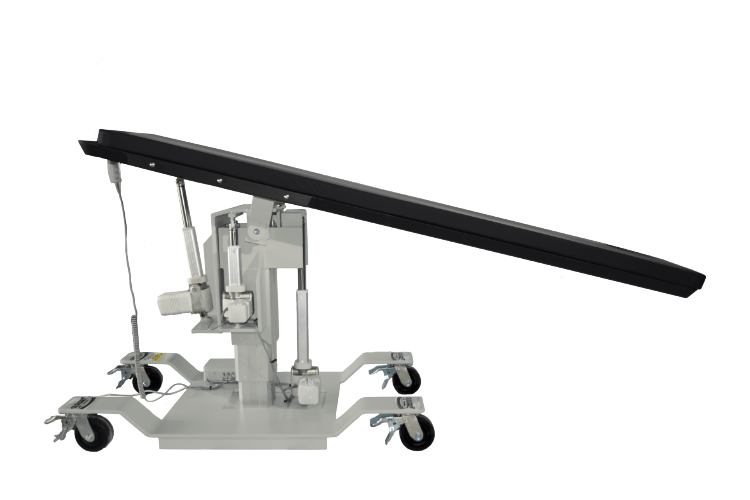

     Trendelenburg Adjustment: +/- 13°


  • EC-4:

     Height Adjustment: 30" to 40"

     Lateral Tilt Adjustment: +/- 17°

     Trendelenburg Adjustment: +/- 13°

     Longitudinal Travel: 10" (+/- 5")


  • EC-5:

     Height Adjustment: 33.5" to 43.5"

     Lateral Tilt Adjustment: +/- 17°

     Trendelenburg Adjustment: +/- 13°

     Longitudinal Travel: 10" (+/- 5")

     Lateral Travel: 10" (+/- 5")


Remote Controls are standard with the EconoMAX tables.

Note that all EC Series imaging tables with motorized movements require 120 VAC power for operation.



Surgical Tables Incorporated provides a 4 Year Limited Warranty on non-electrical parts and a 1 Year Limited Warranty on electrical components. The warranty is only valid to the original purchaser and is not transferable. Surgical Tables Incorporated has the right to assess if misuse has occurred. In the case of misuse the warranty is void.


System Requirements for all Models


EconoMAX Series Surgical Tables - Brochure


EconoMAX Series Surgical Tables - Specifications


Please feel free to ask any additional questions you may have!
No returns for International Shipments *
30-Day Return Policy for Sales in the United States*
The sale of this item may be subject to strict regulation by the US Food and Drug.
Administration and state and local regulatory agencies. If so, do not bid on this item unless you are an authorized purchaser. If the item is subject to state or FDA regulation, you must provide verification that you are an authorized user.
